PASSIVE CROSSOVERS

PHOTOS

NOTE: Clarity Caps, noninductive Mills ressitors and air-core inductors were used

Design by Rick Caig of Selah

Click HERE to return to first page

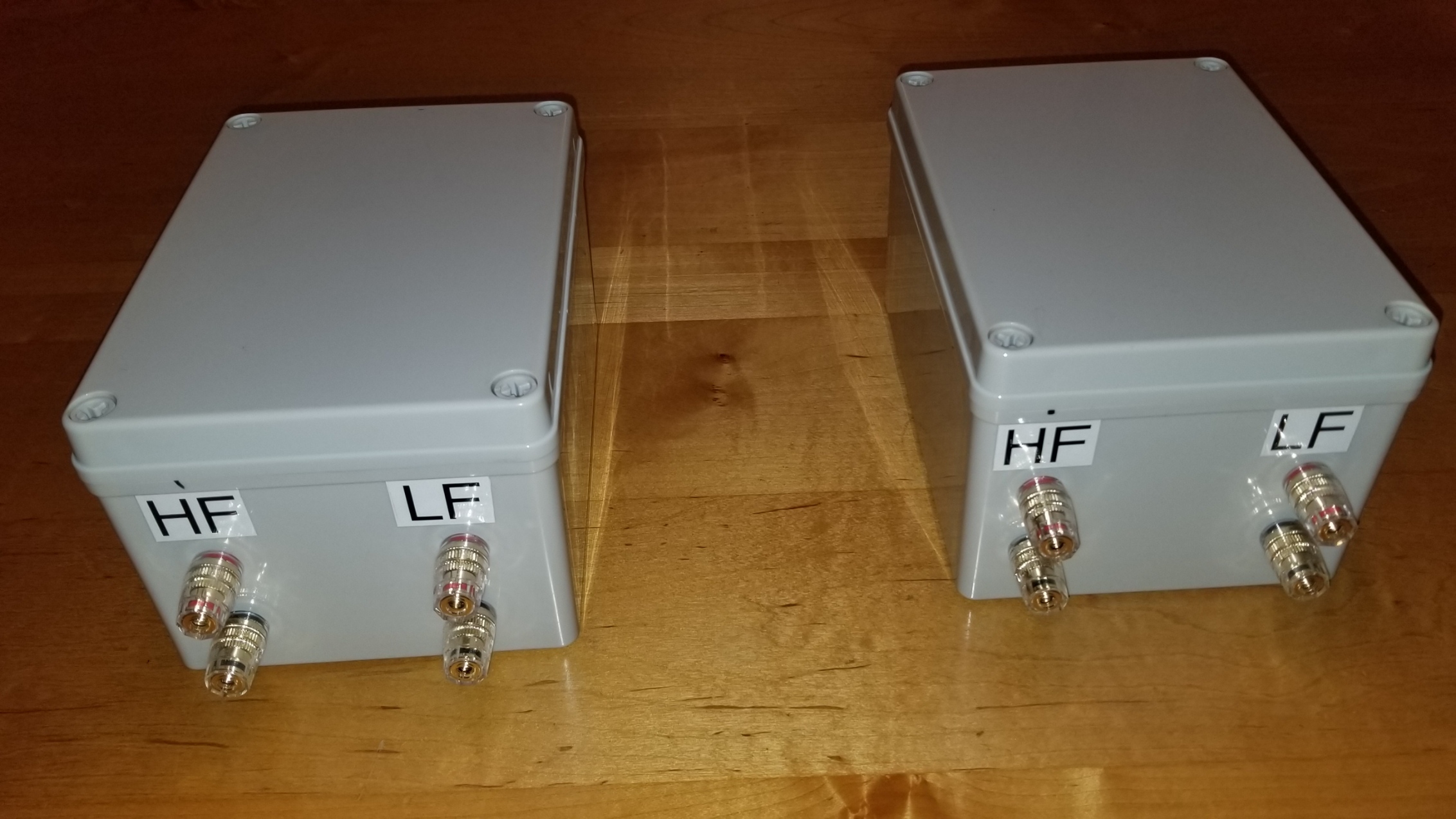

Output Side

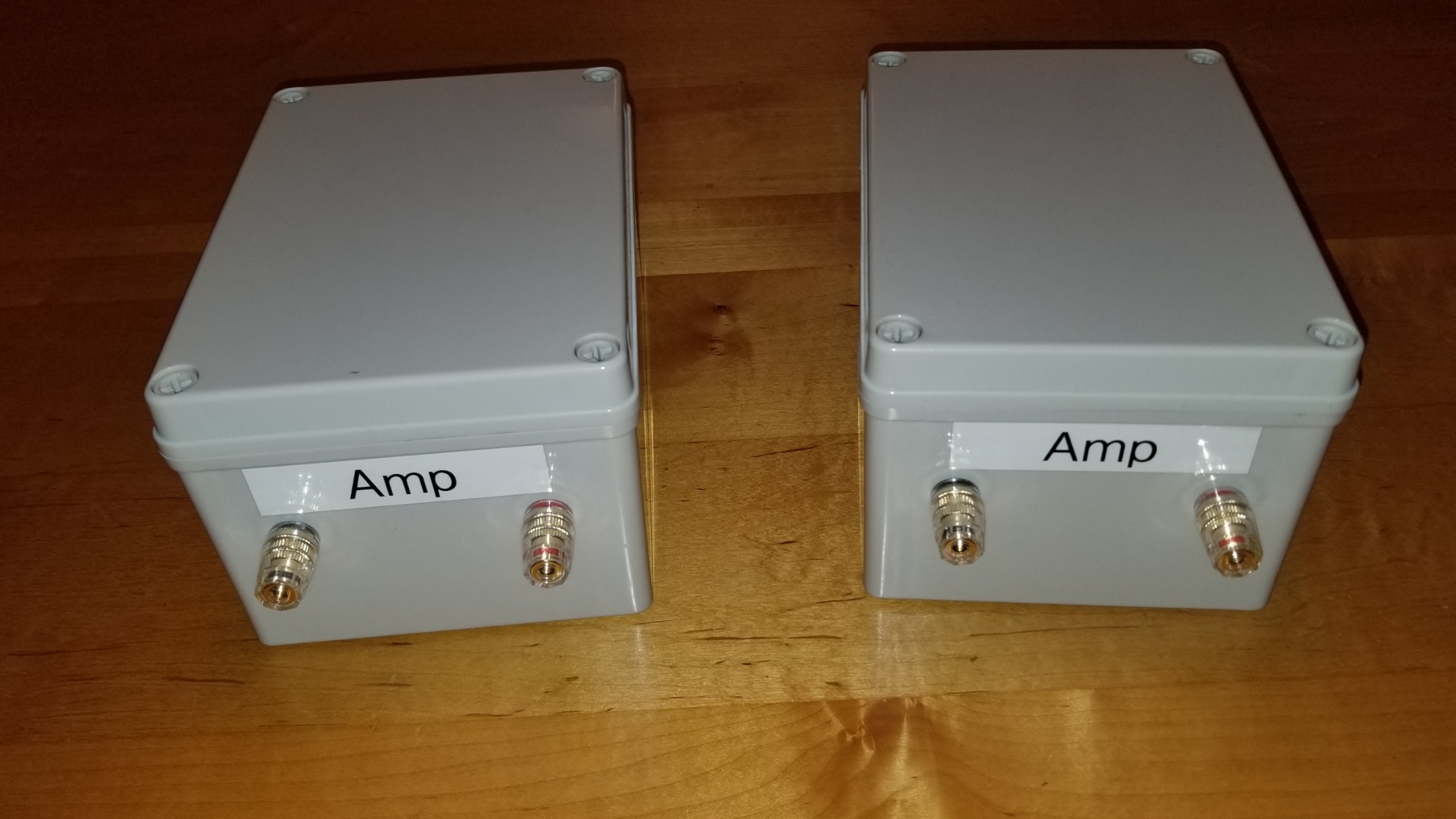

Input Side

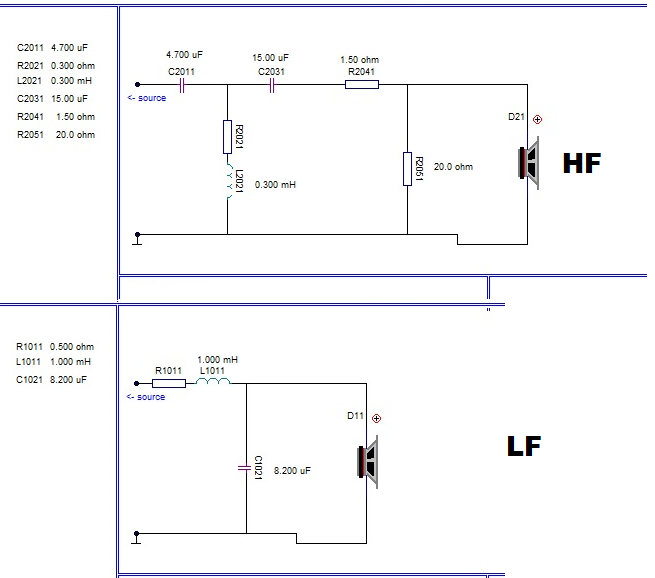

Schematic
